DSLRKIT 4POE 1SFP 2UpLink Gigabit 7 Ports Passive PoE Switch Injector Ethernet

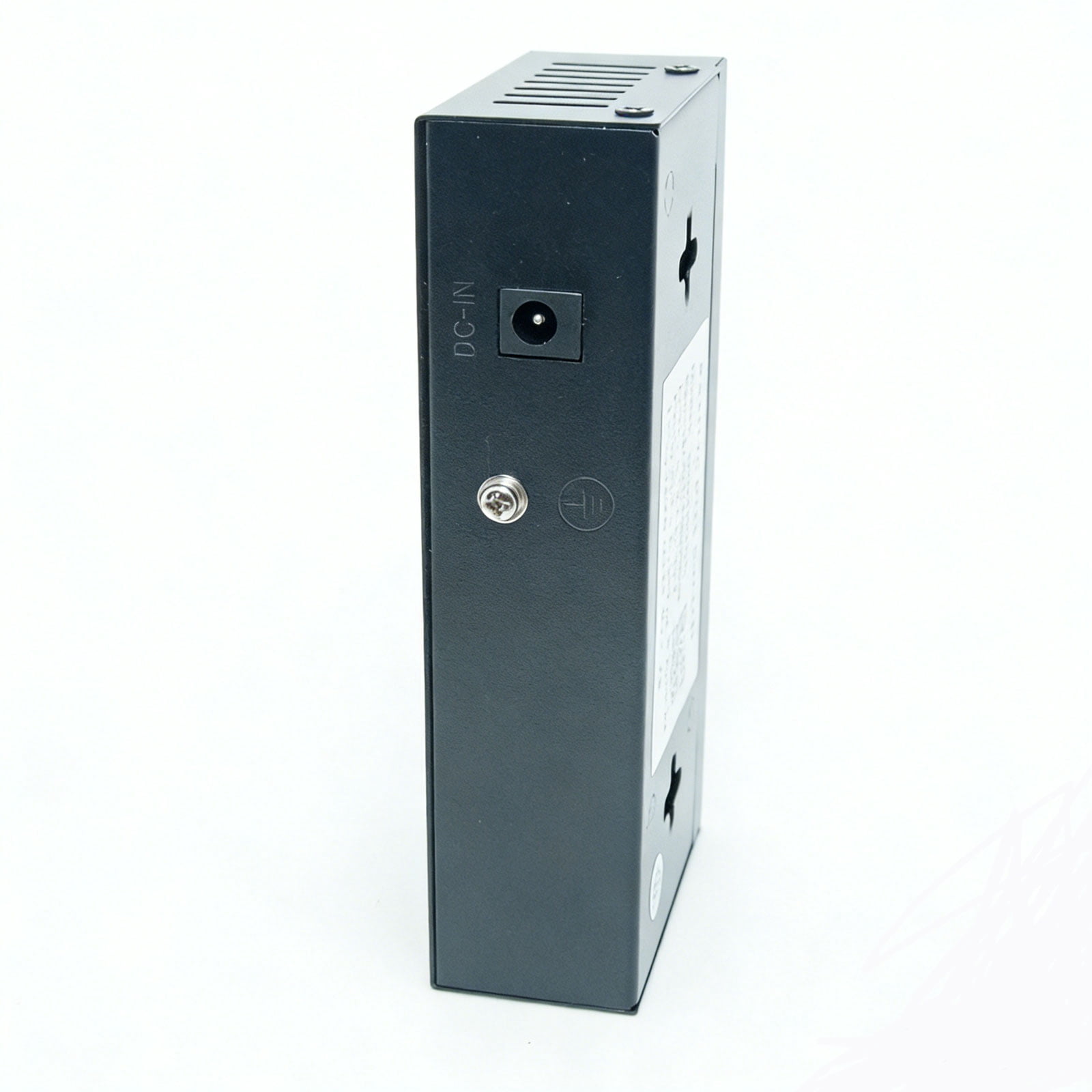

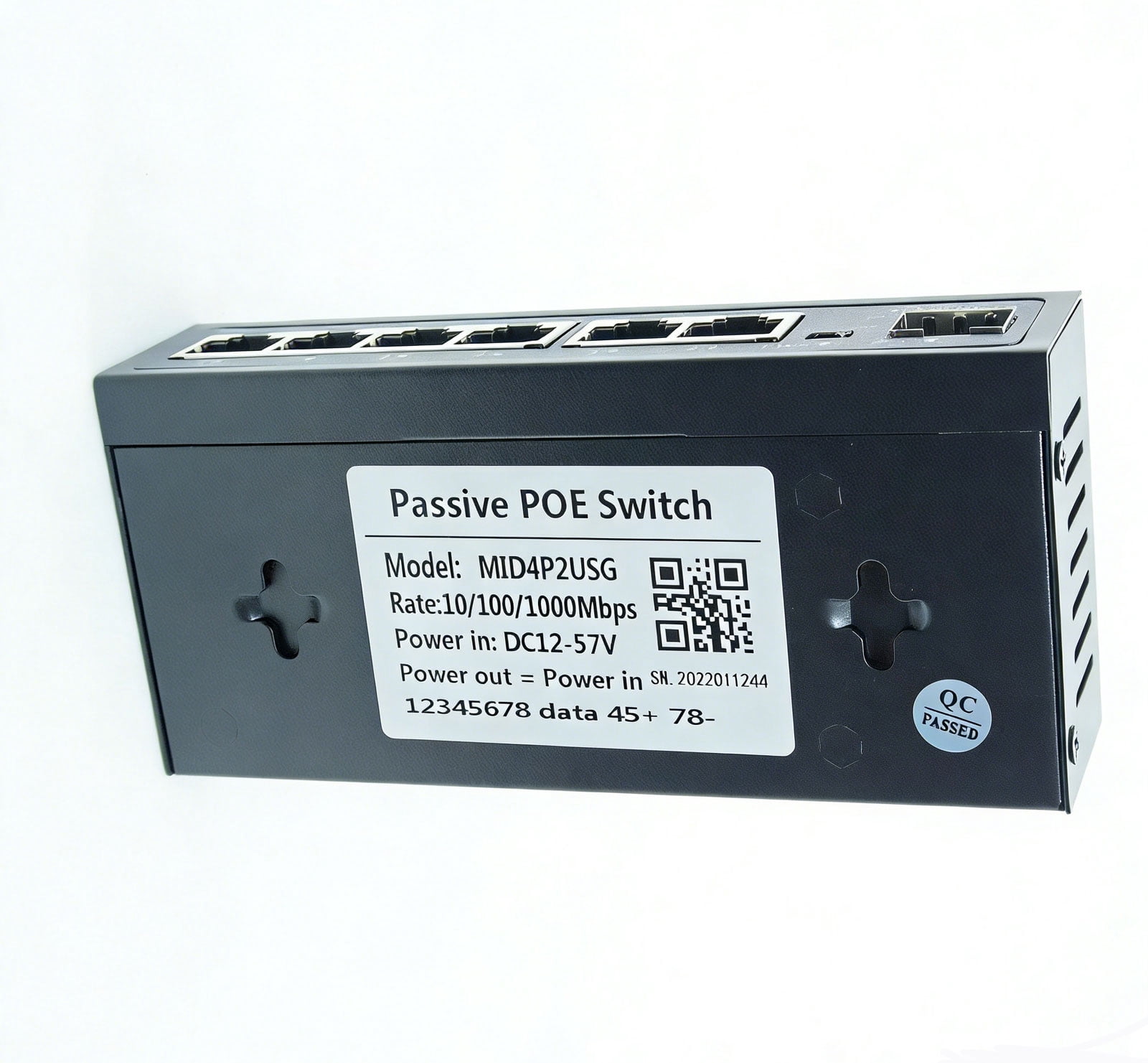

DSLRKIT MID4P2USG&nbsp;Passive PoE Injector Switch<br>&nbsp;ALL Gigabit Ethernet<br>Support&nbsp;EXTEND mode, max Network Cable length to&nbsp;250 meters<br>Power supply not included<br>Supports 12~57V DC power supply<br>DC IN port 5.5X2.1mm, inside positive (+)&nbsp; outside&nbsp; negative (-)<br>7 Ports (4 PoE,2Uplink,1SFP) <br>10/100/1000Mbps<br>Midspan Mode-B<br>Unsolicited Power(4,5+/7,8-)<br><br>This item do not include the power adapter,&nbsp; you need to buy an extra power adapter according to your requirement. So it only suitable for PoE professional customers.<br> Please&nbsp;select&nbsp;the&nbsp;correct&nbsp;Power&nbsp;adapter&nbsp;by&nbsp;POE&nbsp;device， <br> 802.3af&nbsp;(802.3at&nbsp;Type&nbsp;1)&nbsp;PoE&nbsp;device,&nbsp;We&nbsp;suggest&nbsp;DC&nbsp;48V&nbsp;power&nbsp;adapter. <br> 802.3at&nbsp;Type&nbsp;2&nbsp;PoE+(plus)&nbsp;device,&nbsp;We&nbsp;suggest&nbsp;DC52V&nbsp;power&nbsp;adapter. <br> Please&nbsp;refer&nbsp;to&nbsp;the&nbsp;Wikipedia&nbsp;"Power&nbsp;over&nbsp;Ethernet"&nbsp;section,&nbsp;under&nbsp;the&nbsp;"Standard&nbsp;implementation"&nbsp;paragraph. <br><br> NOTE. WhenEXTEND mode enable, the Max bandwidth for the Power Link(PoE) port 1-4 network port will be reduced to 10Mbpsfor each one. Please check your IP CAMERA's&nbsp; bit stream setting. We recommend the value does not over 8Mbps(8192Kbps).<br><br> (The up-link is not affected, it will always working at 1000Mbps max speed)<br><br><br>If your camera is with word “12V/PoE” as this picture shows, then please select 48V(or 52V)&nbsp;Power Adapter, do not select 12V Power Adapter.<br><br>Because "12V/PoE" means it can offer power supply to camera via 12V DC port or 48V PoE Ethernet port:<br>This is an Passive Power Over Ethernet switches, including 4 unsolicited PoE Ethernet ports 2 Uplink ports and 1.25G SFP ports . DC port apply 12~57V power supply adapter(not included), any one of the 4 POE port can provide output power, each Ethernet port can provide network transmission speeds of up to 10/100/1000Mbps , with Cat5 / 5e / 6 network cable.<br>Please&nbsp;do not connect any "NONE PoE gigabit ethernet device and Uplink device"&nbsp;on "PoE 1X~PoE 4X" port, this will damage your device..<br>NONE PoE gigabit ethernet device and Uplink device can only access&nbsp;"UpLink 5X~6X" port, Please do not access&nbsp;"PoE 1X~ PoE 4X", this will damage your device.<br>Features:<br>6 x 10/100/1000Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 4-Ports PoE function(port 1-port 4)<br>1x 1.25G SFP Port<br>Support EXTEND mode, max Network Cable length to 250 meters.&nbsp;<br><br>Midspan Mode-B Unsolicited Power(4,5+/7,8-)<br>Per port Maximum current: 0.84A<br><br>Supports 12~57V DC power supply&nbsp;&nbsp;<br>Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.<br>Full/half duplex transfer mode for each port.<br>Power Input<br> Supports INPUT 12-57V DC power supply<br> Power DC port 5.5 x 2.1mm,inside positive (+)&nbsp; outside&nbsp; negative (-)<br>PoE Power on RJ45<br> Power +: pin 4 &amp; pin 5 ; Power -: pin 7 &amp; pin 8<br> DC Output: 12-57V, Per PoE port Max 0.84A,<br>Product Dimensions 200mm W x 95mm D x 30mm H<br><br>Temperature<br> Operation Temperature:0 ~40℃ (32 ~104℉)<br> Storage Temperature: -40 ~70℃(-40 ~158℉)<br>Humidity&nbsp;<br> Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing<br>Filtering Address Table: 2K entries per device<br>Packet Filtering Forwarding Rate<br> 10Mbps Ethernet: 14,880/pps<br> 100Mbps Ethernet: 148,800/pps<br> 1000MBase-T Ethernet: 1,488,000/pps.<br>MAC address Learning:&nbsp; Automatic update<br>Transmission Method: Store – and- Forward<br><br>Item Included:<br>&nbsp;DSLRKIT MID4P2USG&nbsp;ALL Gigabit&nbsp;PoE switch x1<br> &nbsp;<br>(Power supply not included)

• This is an Passive Power Over Ethernet switches, including 4 unsolicited PoE Ethernet ports 2 Uplink ports and 1.25G SFP ports .
• Support EXTEND mode, max Network Cable length to 250 meters
• 6 x 10/100/1000Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 4-Ports PoE function(port 1-port 4) 1x 1.25G SFP Port Support EXTEND mode, max Network Cable length to 250 meters.
